MV130WU-PL

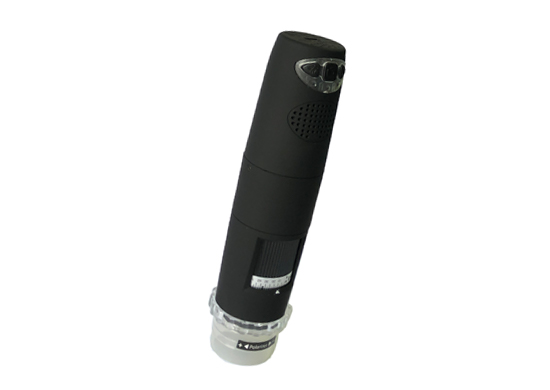

This is a hand-held WiFi digital microscope, 1.3Mega Pixel, Max magnifiaction 200x, It is with polarizer lens. In a reflective environment, it lets you see everything clearly。
Model: | MV130WU-PL (Polarizer) | |
Camera | Camera Type: | Color CMOS Camera |
l Sensor: | 1/4" Imax CMOS | |
Resolution: | 1.30M Pixel | |
Image pixel: | 320(H)x 240(V),640(H)x 480(V), 1280(H)x1024(V) | |
Viewalbe area: | 5x@82x65mm, 200x@1.9x1.5mm | |
Frame rate: | 15fps@1280x1024, 30fps@640x480,30fps@320x240 | |
Image Quality | Highest Definition | |
Optical features: | Gamma Correction: Auto | |
Numerical Aperture: Auto | ||
Exposure: Auto | ||
White Balance: Auto | ||
Black Reference: Auto | ||
Flicker Avoidance: Auto | ||
Defect Identification: Auto | ||
Color Saturation: Auto | ||
Microscope | Adjustable Magnification: | 5x ~200x |
Object Distance: | 0~300mm | |
Focus Range: | 8~300mm | |
Illumination: | 8pcs white LED with switchable polarizer | |
Lens: | 200x microscopical lens with polarized filter | |
Button Snapshot: | Yes for WiFi and USB | |
Dimension: | 36mm(Diameter) x 142mm(Length) | |
WiFi | WiFi Standard: | IEEE 802.11 b/g/n |
WiFi Transmission Distance: | ≥5M | |
Video resolution: | 1.3MP: 320(H)x 240(V),640(H)x 480(V), 1280(H)x1024(V) | |
Frequency Range: | 2.400 ~ 2.4835GHz | |
Li-ion Battery: | Continuous Working Time—Appx.2.5 Hours | |
Power Source: | 5V/1A or USB | |
OS support: | IOS / Android/ Windows /Mac. | |
USB | Interface: | USB 2. 0 |
Resolution: | 1.3MP: 320(H)x 240(V),640(H)x 480(V), 1280(H)x1024(V) | |
OS support: | MAC/Windows | |
MiniUSB Cable: | 1.2M | |
Software | App for WiFi Mode: | Hiview Plus--IOS/MAC/Android/Windows |
Software for USB mode: | Miviewcap--Windows, Allview---MAC | |
Software Features: | Hiview Plus:Snapshot,video recording,calibration and measurement | |
Miviewcap: Snapshot,video recording,Take time lapsed picture,Calibration and Measurement:length,area,diameter,angle and Calibration on still image. | ||
Allview: Snapshot,video recording,Take time lapsed picture,Calibration and Measurement:length,area,diameter,angle and Calibration on still image. |
